25º Aniversario 1er vuelo Embraer E145

AW | 2020 08 12 22:03 | AVIATION HISTORY
Primer jet regional de Embraer 25 años de su primer vuelo

La familia Embraer Embraer Regional Jet (ERJ) es una serie de aviones regionales bimotores producidos por la aeroespacial Embraer S.A. de la República de Brasil. La compañía brasileña está celebrando el 25 aniversarios del primer vuelos del prototipo ERJ-145 (E145) que efectuó su vuelo inaugural el 11 Agosto 1995 en Sao José dos Campos, Estado de Rio de Janeiro, Brasil.
Los aviones de la Serie ERJ incluyen el ERJ135 (37 pasajeros), ERJ140 (44 pasajeros) y ERJ145 (50 pasajeros), así como el avión comercial Legacy y la familia de aviones militares R-99. Cada jet de la serie está propulsado por dos motores turbofan. La competencia principal de la familia proviene de los aviones regionales Bombardier CRJ.

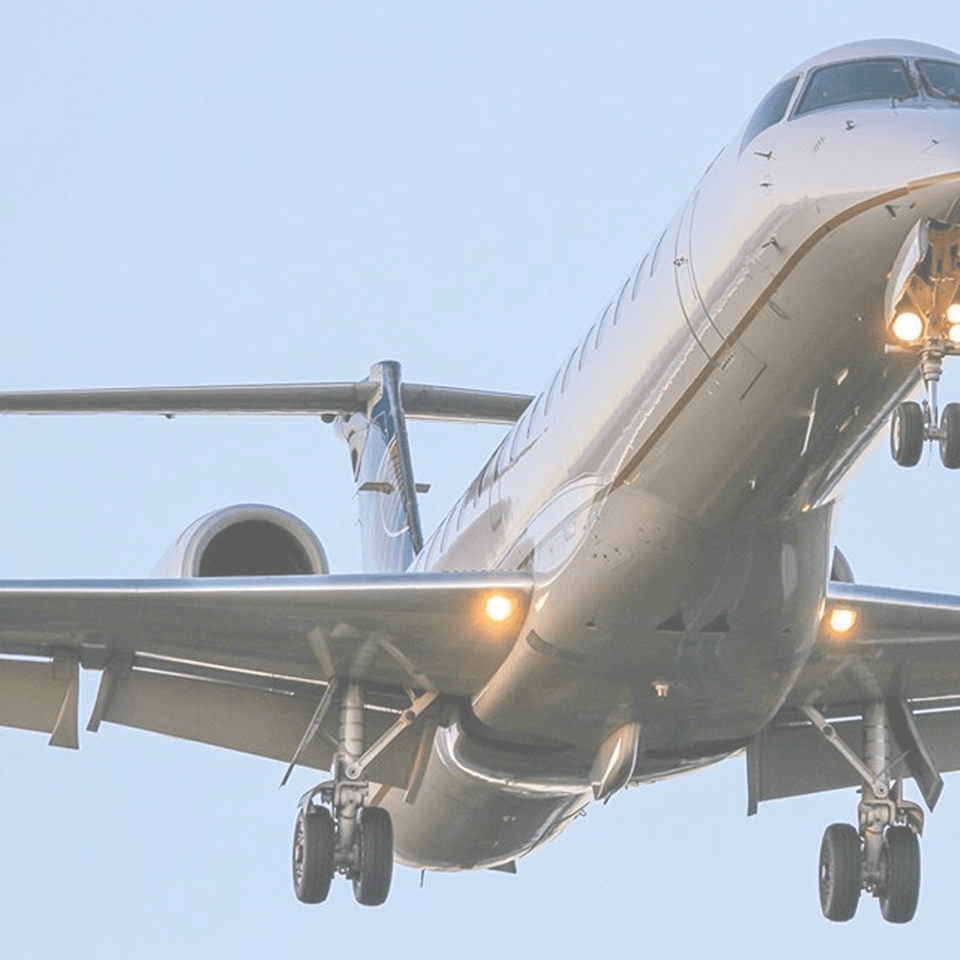

EMBRAER E145
El ERJ145, ahora denominado E145 fue diseñado para un nuevo mercado percibido para aviones de reacción regionales, donde el aumento de la velocidad, la comodidad y el atractivo de los pasajeros superarían la economía de combustible inherente de los aviones turbohélice que estaban en servicio y en desarrollo. El diseño original del EMB-145 Amazon con un ala recta y motores alojados sobre el plano alar.

El EMB145 de 45 a 48 asientos se lanzó en el Salón Aeronáutico de París en 1989 como un tramo de 18 pies (5,5 m) del EMB 120 Brasilia desarrollado por US$ 150 millones más US$ 50 millones para capacitación y marketing, un tercio del costo del Short Brothers FJX cancelado. proyecto. Su costo unitario de US$ 11 millones habría sido US$ 3 millones menos que el Canadair CRJ. El 400 kN (740 km/h) de empuje motriz sería alimentado por GE/Garrett CFE738s, 502S Lycoming ALF o Rolls-Royce plc/Allison Engine AB580s turbofans, que se seleccionará en 1989. Estaba previsto para una introducción a finales de 1992 con seis producidos y luego aumentaron a 60 por año en 1995. Apuntaba a la mitad de un mercado de 1000 con un punto de equilibrio después de doce años con 400 vendidos.Con el 75% de las piezas y sistemas de Brasilia, el EMB145 Amazon tenía como objetivo un primer vuelo en 1991. El tramo resultó de dos tapones de 11 pies (3,4 m) del fuselaje de 7 pies 6 pulgadas (2,29 m) de diámetro en la parte delantera y detrás del ala rediseñada de 538 pies cuadrados (50,0 m2). Su superficie aerodinámica supercrítica con un grosor de raíz del 14% tenía su cuerda extendida en el borde de ataque con un ligero barrido , mayor relación de aspecto y aletas. Los motores de vaina sobre las alas generaron 6.400 lbf (28 kN) de empuje. Diseñado para etapas de 500-600 nmi (930-1,110 km), hasta 1,400 nmi (2,600 km) con una carga útil reducida, tenía un peso máximo de despegue (MTOW) de 36,375 lb (16,500 kg) y un 21,045 lb (9,546 kg) peso en vacío operativo.
Rediseño del EMB-145
En Marzo 1991, una configuración revisada comenzó las pruebas en el túnel de viento: el barrido del ala de un cuarto de cuerda aumentó a 22,3° con motores suspendidos para una menor resistencia aerodinámica. En Junio 1991, el Gobierno brasileño ha aportado en préstamos por valor de US$ 600 millones a Embraer y en Julio 1991 el programa fue reevaluado mientras las herramientas estaban completas en un 80%. Para Noviembre 1991, Embraer todavía estaba buscando socios para compartir el riesgo del proyecto de US$ 350 millones, con la esperanza de obtener la aprobación del gobierno para fin de año. Vendido por US$ 12 millones de dólares con una cabina totalmente digital y motores de 31,8 kN (7.100 lbf), tenía cartas de intención para 337 unidades. El primer vuelo se deslizó a 1992 y la certificación a fines de 1993
Diseño definitivo
Después de la reevaluación a fines de 1991, el diseño se revisó nuevamente con dos motores montados en el fuselaje trasero y se probaría una velocidad de crucero de Mach 0.8 en el túnel de viento. El paso del asiento es de 79 cm (31 pulgadas). Un tramo adicional de 50 a 55 pasajeros está limitado por un ángulo de rotación de 12°. Embraer continuó buscando socios para compartir el desarrollo de US$ 350 millones ya que se esperaba el primer vuelo para fines de 1994. En Diciembre 1994, Embraer fue privatizada en un 80% para inversionistas brasileños y estadounidenses mientras que el Gobierno brasileño se quedó con el 20%.

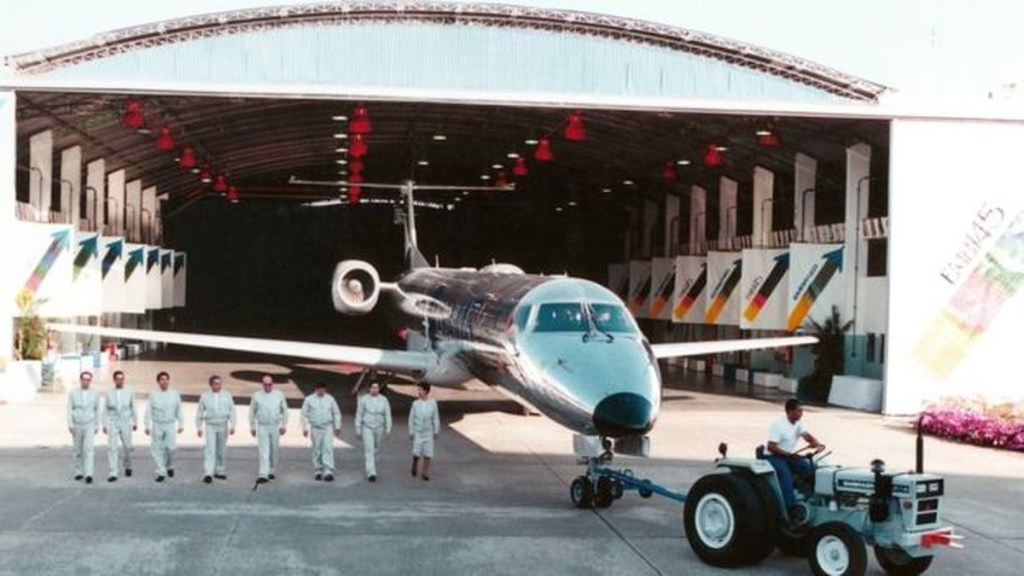

Primer vuelo
Voló por primera vez el 11 Agosto 1995 con 18 pedidos en firme, 16 opciones y 127 cartas de intención. Se planificó un programa de pruebas de vuelo de 1.300 horas para el prototipo y tres aviones de la pre-serie (excluyendo dos fuselajes de prueba en tierra) dentro de los 13 meses para la certificación en el tercer trimestre de 1996, antes de las entregas en el cuarto trimestre de 1996 para lanzar el vuelo del cliente Flight West Airlines. El avión de US$ 14,5 millones de Dólares se desarrolla con socios de riesgo compartido, incluida la española Gamesa que produce el ala; Enaer de Chile para la cola; y C&D Interiors de Estdos Unidos equipando la cabina. El peso máximo estándar de la rampa es de 19.300 y 20.300 kg (42,500 y 44,800 lb) para el rango extendido, está equipado con Honeywell Primus1000 aviónica integrada.
El costo de desarrollo estimado de US$ 300 millones se divide entre Embraer para el 34%, socios de riesgo compartido para el 33% (incluida la SONACA de Bélgica que suministra las secciones centrales y traseras del fuselaje, las puertas, las torres de motor y los bordes de ataque de las alas), préstamos a largo plazo del financiamiento brasileño para el desarrollo. instituciones para el 23% y proveedores participantes para el 10%. Tanto en los sectores del alimentador de buje de 370 km (200 nm) como de los de derivación de buje de 1.100 km, se esperaba que el EMB145 ofreciera costos operativos más bajos que el turbohélice de alta velocidad Saab 2000 de precio similar y el CRJ. Su precio de US$ 15 millones fue US$ 4 millones más bajo que el CRJ.
La campaña de prueba de vuelo tomó cuatro aviones: S/N 801, PT-ZJA, S/N 001, PT-ZJB, S/N 002, PT-ZJC y S/N 003, PT-ZJD. Solo el S/N 003 estaba equipado con asientos de pasajeros y no tenía FTI (instrumentación de prueba de vuelo) y se utilizó para pruebas funcionales y de confiabilidad. En Julio 1996, su certificación estaba prevista para octubre. La primera entrega estaba prevista para finales de noviembre, se producirían 29 aviones en 1997, 38 en 1998 y al menos 48 al año a partir de entonces. Su MTOW podría elevarse del estándar de 19.200 a 20.600 kg (42,300 a 45,400 lb) para una versión de rango mejorado. Las pruebas de vuelo permitieron aumentar su velocidad de crucero a Mach 0,78 desde 0,74, y mostraron que la economía de combustible era un 7% mejor de lo previsto. Antes del Salón Aeronáutico de Farnborough en el verano de 1996, Embraer tenía 62 pedidos en firme y 218 opciones. Continental Express luego compró 25 EMB145 y tomó 175 opciones. Más de 50 asientos necesitarían un fuselaje más ancho para asientos de cuatro al lado, un ala más grande y un turboventilador más potente. Fue aprobado por la Federal Aviation Administration (FAA) el 10 Diciembre 1996.
Embraer entregó 892 unidades de todas las variantes hasta 2006 y predijo que se entregarían otras 102 unidades en el período 2007-2016.
Línea producción en China
En 2003, Embraer se asoció con Harbin Aircraft Industry Group de Harbin, China. La empresa conjunta resultante Harbin Embraer Aircraft Industry comenzó a producir el ERJ145 para el mercado chino mediante el ensamblaje de kits de desmontaje completos preparados por otras operaciones mundiales de Embraer. Después de 13 años, su última entrega fue en marzo de 2016; Se ensamblaron más de 40 ERJ145 y 5 Embraer Legacy 650.
Versiones abreviadas
El ERJ-145 con el ERJ-135 en Farnborough en Julio 2000 Embraer ha introducido dos versiones abreviadas del ERJ145. Los tres aviones comparten la misma habilitación de tipo de tripulación, lo que permite a los pilotos volar cualquiera de los tres aviones sin necesidad de más formación. El ERJ140 es 1,42 metros (4,7 pies) más corto, tiene capacidad para 44 pasajeros y tiene un 96% de partes en común con el ERJ145. Los únicos cambios significativos son un fuselaje más corto, un motor ligeramente reducido y una mayor autonomía. El ERJ140 fue diseñado con menos asientos para satisfacer las necesidades de algunas de las principales aerolíneas de Estados Unidos, que tienen un acuerdo con el sindicato de pilotos para limitar la cantidad de aviones de 50 asientos que pueden volar sus afiliados. En el momento del lanzamiento, Embraer estimó que el costo de un ERJ140 era de aproximadamente US$ 15,2 millones. El costo estimado de desarrollo del ERJ140 fue de US$ 45 millones. El ERJ135 es 3,54 metros (11,6 pies) más corto, tiene capacidad para 37 pasajeros y tiene un 95% de similitudes con el ERJ145. El primer ERJ135 entró en servicio en 1999.
Motorización & aviónica
La familia de aviones EMB145 generalmente vienen equipados con dos 3007 Rolls-Royce AE serie de turboventilador motores. Los motores tienen una relación de derivación de 5:1. Los motores están controlados por dos FADEC (controles digitales de motor de autoridad total). Los FADEC controlan prácticamente todos los aspectos del motor y envían datos del motor para que se muestren en el EICAS para el piloto.
La familia de aviones Embraer ERJ145 normalmente viene equipada con el paquete de aviónica Honeywell Primus 1000 . La suite normalmente consta de cinco pantallas o unidades de visualización CRT (DU). De izquierda a derecha, el sistema consta de una pantalla de vuelo principal (PFD), pantalla multifunción (MFD), sistema de alerta de tripulación e indicación del motor (EICAS), pantalla multifunción (MFD) (copiloto) y vuelo principal Pantalla (PFD) (copiloto). Las DU son normalmente CRT, pero se pueden actualizar a pantallas LCD más ligeras. Estas DU mejoradas también tienen funcionalidad adicional.
Historial operativo
La primera entrega fue en Diciembre 1996 a ExpressJet Airlines (entonces la división regional de Continental Airlines que volaba como Continental Express). ExpressJet es el mayor operador del ERJ145, con 270 de los casi 1000 ERJ145 en servicio. El segundo mayor operador es Envoy Air , con 206 aviones ERJ145. Piedmont Airlines también opera 60 ERJ145 a través de una alianza con American Airlines.

25th Anniversary 1st Embraer E145 flight
Embraer’s first regional jet 25 years since its first flight

The Embraer Regional Jet (ERJ) family is a series of twin-engine regional aircraft produced by aerospace Embraer S.A. of the Republic of Brazil. The Brazilian company is celebrating the 25th anniversary of the first flight of the ERJ-145 (E145) prototype that carried out its maiden flight on August 11, 1995 in Sao José dos Campos, State of Rio de Janeiro, Brazil.
The ERJ Series aircraft include the ERJ135 (37 passengers), ERJ140 (44 passengers) and ERJ145 (50 passengers), as well as the Legacy commercial airliner and the R-99 family of military aircraft. Each jet in the series is powered by two turbofan engines. The family’s main competition comes from the Bombardier CRJ regional aircraft.

EMBRAER E145
The ERJ145, now referred to as E145, was designed for a perceived new market for regional jet aircraft, where increased speed, comfort and passenger appeal would outweigh the inherent fuel economy of turboprop aircraft that were in service and on. developing. The original design of the EMB-145 Amazon with a straight wing and engines housed on the wing plane.
The 45-48-seat EMB145 was launched at the Paris Air Show in 1989 as an 18-foot (5.5 m) stretch of the EMB 120 Brasilia developed for US$ 150 million plus US$ 50 million for training and marketing, a third of the Short Brothers FJX cost canceled. draft. Its unit cost of US$ 11 million would have been US$ 3 million less than the Canadair CRJ. The 400 kN (740 km/h) of engine thrust would be powered by GE/Garrett CFE738s, 502S Lycoming ALF or Rolls-Royce plc/Allison Engine AB580s turbofans, to be selected in 1989. It was slated for an introduction in late 1992 with six produced and then increased to 60 per year in 1995. It was targeting the middle of a 1000 market with a breakeven point after twelve years with 400 sold.
With 75% of the parts and systems from Brasilia, the EMB145 Amazon was targeting a maiden flight in 1991. The span resulted from two 11 ft (3.4 m) plugs of the 7 ft 6 in (2.29 m) diameter at the front and behind the redesigned 538 sq ft (50.0 m 2) wing. Its supercritical airfoil with a 14% root thickness had its chord extended at the leading edge with a slight sweep, higher aspect ratio and fins. The pod engines on the wings generated 6,400 lbf (28 kN) of thrust. Designed for stages of 500-600 nmi (930-1,110 km), up to 1,400 nmi (2,600 km) with a reduced payload, it had a maximum takeoff weight (MTOW) of 36,375 lb (16,500 kg) and a 21,045 lb (9,546 kg) operating curb weight.
EMB-145 redesign
In March 1991, a revised configuration began testing in the wind tunnel: quarter-chord wing sweep increased to 22.3° with suspended engines for less aerodynamic drag. In June 1991, the Brazilian Government provided US US$ 600 million in loans to Embraer and in July 1991 the program was re-evaluated while the tools were 80% complete. As of November 1991, Embraer was still looking for partners to share the risk of the US$ 350 million project, hoping to get government approval by the end of the year. Sold for US$ 12 million with a fully digital cockpit and 31.8 kN (7,100 lbf) engines, it had letters of intent for 337 units. The first flight slipped to 1992 and certification in late 1993.
Definitive design
After reassessment in late 1991, the design was revised again with two engines mounted in the rear fuselage and a cruising speed of Mach 0.8 would be tested in the wind tunnel. The seat pitch is 79 cm (31 inches). An additional section of 50 to 55 passengers is limited by a rotation angle of 12°. Embraer continued to seek partners to share in the US$ 350 million development as the first flight was expected by the end of 1994. In December 1994, Embraer was 80% privatized for Brazilian and US investors while the Brazilian government kept it 20%.

First flight
It flew for the first time on August 11, 1995 with 18 firm orders, 16 options and 127 letters of intent. A 1,300 hour flight test program was planned for the prototype and three pre-series aircraft (excluding two ground test airframes) within 13 months for certification in the third quarter of 1996, prior to deliveries. in the fourth quarter of 1996 to launch customer flight Flight West Airlines. The US$ 14.5 million plane is developed with joint venture partners, including Spain’s Gamesa, which produces the wing; Enaer from Chile for the tail; and C&D Interiors of the United States equipping the cabin. The standard maximum weight of the ramp is 19,300 and 20,300 kg (42,500 and 44,800 lb) for the extended range, it is equipped with Honeywell Primus1000 integrated avionics.
The estimated development cost of US$ 300 million is divided between Embraer for 34%, JV partners for 33% (including SONACA of Belgium that supplies the center and rear sections of the fuselage, doors, engine towers and the leading edges of the wings), long-term loans from Brazilian development finance. institutions for 23% and participating providers for 10%. In both the 370km (200nm) hub feeder and 1,100km hub bypass sectors, the EMB145 was expected to deliver lower operating costs than the similarly priced Saab 2000 high-speed turboprop and CRJ. Its $ 15 million price tag was US$ 4 million lower than the CRJ.
The flight test campaign took four aircraft: S/N 801, PT-ZJA, S/N 001, PT-ZJB, S/N 002, PT-ZJC and S/N 003, PT-ZJD. Only the S/N 003 was equipped with passenger seats and did not have FTI (flight test instrumentation) and was used for functional and reliability testing. In July 1996, his certification was scheduled for October. The first delivery was scheduled for the end of November, 29 aircraft would be produced in 1997, 38 in 1998 and at least 48 a year thereafter. Its MTOW could be raised from the standard 19,200 to 20,600 kg (42,300 to 45,400 lb) for an upgraded range version. Flight tests increased its cruising speed to Mach 0.78 from 0.74, and showed that fuel economy was 7% better than anticipated. Before the Farnborough Airshow in the summer of 1996, Embraer had 62 firm orders and 218 options. Continental Express then bought 25 EMB145s and took 175 options. More than 50 seats would need a wider fuselage for four-sided seats, a larger wing, and a more powerful turbofan. It was approved by the Federal Aviation Administration (FAA) on December 10, 1996.
Embraer delivered 892 units of all variants through 2006 and predicted another 102 units would be delivered in the 2007-2016 period.
Production line in China
In 2003, Embraer partnered with the Harbin Aircraft Industry Group of Harbin, China. The resulting joint venture Harbin Embraer Aircraft Industry began producing the ERJ145 for the Chinese market by assembling complete stripping kits prepared by other Embraer global operations. After 13 years, his last installment was in March 2016; More than 40 ERJ145 and 5 Embraer Legacy 650 were assembled.
Short versions
ERJ-145 with ERJ-135 at Farnborough in July 2000 Embraer has introduced two shortened versions of the ERJ145. All three aircraft share the same crew type rating, allowing pilots to fly any of the three aircraft without the need for further training. The ERJ140 is 1.42 meters (4.7 feet) shorter, seats 44 passengers, and has 96% parts in common with the ERJ145. The only significant changes are a shorter fuselage, a slightly reduced engine, and increased range. The ERJ140 was designed with fewer seats to meet the needs of some of the major airlines in the United States, which have an agreement with the pilots union to limit the number of 50-seat aircraft that their members can fly. At the time of launch, Embraer estimated the cost of an ERJ140 to be approximately US$ 15.2 million. The estimated development cost of ERJ140 was US$ 45 million. The ERJ135 is 3.54 meters (11.6 feet) shorter, seats 37 passengers, and has 95% similarities to the ERJ145. The first ERJ135 entered service in 1999.
Motorization & avionics
The EMB145 family of aircraft generally come equipped with two 3007 Rolls-Royce AE series turbofan engines. Engines have a 5:1 bypass ratio. Engines are controlled by two FADECs (Full Authority Digital Engine Controls). FADECs control virtually every aspect of the engine and send engine data to be displayed on the EICAS for the pilot.
The Embraer ERJ145 family of aircraft typically comes equipped with the Honeywell Primus 1000 avionics package. The suite typically consists of five CRT displays or display units (DU). From left to right, the system consists of a Main Flight Display (PFD), Multi-Function Display (MFD), Engine Indication and Crew Alert System (EICAS), Multi-Function Display (MFD) (copilot) and Main Flight Display ( PFD) (co-pilot). DUs are normally CRTs, but can be upgraded to lighter LCD screens. These enhanced DUs also have additional functionality.
Operating history
The first delivery was in December 1996 to ExpressJet Airlines (then the regional division of Continental Airlines that flew as Continental Express). ExpressJet is the largest operator of the ERJ145, with 270 of the nearly 1,000 ERJ145 in service. The second largest operator is Envoy Air, with 206 ERJ145 aircraft. Piedmont Airlines also operates 60 ERJ145s through an alliance with American Airlines.
