Lion Air JT-610 | Día 17
AW | 2018 11 14 21:37 | AIR INVESTIGATION / AVIATION SAFETY
FAA y Boeing estudian la necesidad de cambios en el software 737 MAX después del accidente de Lion Air
La Administración Federal de Aviación de Estados Unidos (FAA) y Boeing están evaluando la necesidad de cambios en el diseño o el software de los 737 MAX. El estudio se produce tras el mortal accidente del vuelo JT-610 de Lion Air del mes pasado en Indonesia. Los investigadores indonesios dijeron que el sistema de vuelo no describía un sistema diseñado para enfrentar el escenario del accidente. Pidieron más entrenamiento para los pilotos del Boeing 737-8 MAX.
Investigadores indonesios dijeron el lunes que un sistema diseñado para enfrentar el escenario del accidente no se describió en el Manual de Vuelo del nuevo avión Boeing 737 MAX. Los procedimientos operativos y la capacitación para el Boeing 737 MAX también podrían cambiar a medida que la FAA y Boeing aprendan más de la investigación, dijo el regulador en un comunicado. Los sindicatos de pilotos de Estados Unidos dijeron más tarde que no estaban al tanto del nuevo sistema antibloqueo.
Los investigadores se están preparando para publicar su informe preliminar sobre el accidente el 28 o 29 Noviembre 2018, un mes después de que el avión Boeing 737-8 MAX Lion Air se estrellara a gran velocidad en el Mar de Java. Hasta ahora, la atención pública se ha centrado principalmente en los posibles problemas de mantenimiento, incluido un sensor defectuoso denominado Ángulo de Ataque (AOA), un dato vital que se necesita para ayudar a la aeronave a volar en el ángulo correcto a las corrientes de aire y evitar un bloqueo.
Continúan investigaciones JT-610
El enfoque de la investigación parece estar expandiéndose a la claridad de los procedimientos aprobados por los Estados unidos para ayudar a los pilotos a evitar que el 737 MAX reaccione en exceso ante tal pérdida de datos y los métodos para capacitarlos.
La información recuperada del registrador de datos del avión la semana pasada llevó a la FAA a emitir una advertencia de emergencia a los pilotos de que una computadora en el 737 MAX podría forzar al avión a descender bruscamente durante hasta 10 segundos, incluso en vuelo manual, lo que dificulta que un piloto pueda controlar la aeronave. Los pilotos pueden detener esta respuesta automática presionando dos botones si el sistema se comporta de manera inesperada. Pero se han planteado preguntas acerca de qué tan bien preparados están los pilotos para una reacción tan automática y cuánto tiempo tienen para responder. La FAA negó el martes el informe de que había lanzado una nueva investigación sobre los análisis de seguridad realizados por Boeing en el 737 MAX.
El Presidente Ejecutivo de Boeing, Dennis Muilenburg, dijo el martes que Boeing proporciona “toda la información que se necesita para volar con seguridad nuestros aviones y que el 737 MAX es un avión muy seguro. Esto se debe a miles de horas de pruebas, evaluaciones, simulaciones y el suministro de la información que nuestros pilotos necesitan para operar nuestros aviones de manera segura. En ciertos modos de falla, si hay un ángulo incorrecto de la información de alimentación del sensor de ataque al avión, hay un procedimiento para manejar eso”.
La cantidad de Boeing 737 entregados bajó ligeramente de las 61 entregadas en Septiembre 2018 a 43 en Octubre 2018 debido a los problemas persistentes de los proveedores, señalados por un ejecutivo de Boeing la semana pasada.
Presiones sobre Boeing
Boeing enfrentaba una creciente presión el miércoles por el desastre del avión en Indonesia cuando el fabricante no advirtió a los pilotos sobre los peligros potenciales de una nueva característica de seguridad implicada en el Boeing 737 MAX.
El Director de Operaciones de la aerolínea Lion Air, Zwingli Silalahi, dijo: “El manual no les decía a los pilotos que, en ciertas situaciones, el sistema de prevención de pérdida del avión podría provocar automáticamente una respuesta, como bajar la nariz del avión, para evitar o salir de una parada. No tenemos eso en el manual del Boeing 737-8 MAX. Por eso no tenemos la capacitación especial para esa situación específica. El Boletín de Seguridad de Boeing no sugirió capacitación adicional para los pilotos que operan ese avión. No recibimos ninguna información de Boeing ni del regulador sobre la capacitación adicional para nuestros pilotos”, dijo.
El resultado de la investigación en curso, realizada por la Comisión Nacional de Transporte de Indonesia (KNKT), la Junta Nacional de Seguridad del Transporte de los Estados Unidos (NTSB) y Boeing, determinaron que era necesaria una capacitación adicional.
Un portavoz de Boeing dijo este miércoles que no podía “discutir detalles específicos de una investigación en curso” y que la compañía “había proporcionado dos actualizaciones para nuestros operadores en todo el mundo que vuelven a enfatizar los procedimientos existentes para estas situaciones. Confiamos en la seguridad del 737 MAX. La seguridad sigue siendo nuestra principal prioridad y es un valor fundamental para todos en Boeing”, dijo el vocero.
El Jefe de la Dirección de Aeronavegabilidad y Operaciones Aéreas (DOAAO) del Ministerio de Transporte de Indonesia dijo que la agencia estaba en un proceso de intensas discusiones sobre la capacitación adicional para los pilotos que vuelan los aviones Boeing 737 MAX, pero no dio detalles sobre qué entrenamiento adicional implicaría.
Sensor de Aire

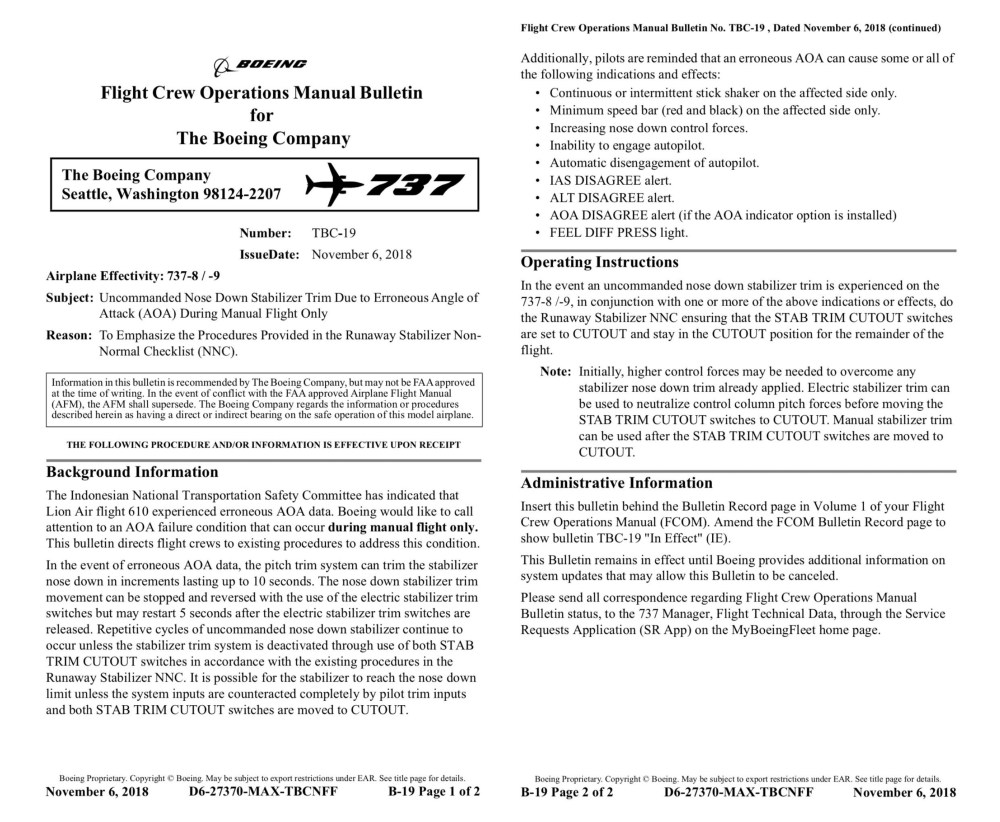

El Boletín Operacional de Boeing, publicado la semana pasada, señaló a las aerolíneas los procedimientos existentes de la tripulación de vuelo para abordar cualquier lectura errónea relacionada con los sensores de Ángulo de Ataque (AOA). Un sensor AOA es un instrumento, similar a una pequeña veleta, que se encuentra fuera del avión justo debajo de la cabina y envía información a sus computadoras sobre el ángulo de la nariz del avión con respecto al aire que se aproxima. El sensor ayuda a determinar en qué ángulo se encuentra respecto al horizonte.
La Administración Federal de Aviación de los Estados Unidos (FAA) emitió posteriormente su propia directiva que aconsejaba a los pilotos sobre cómo responder a problemas similares.
Falta la grabadora de voz
Más de dos semanas después del accidente, las autoridades todavía están buscando la Grabadora de Voz de la Cabina (CVR), que se cree está enterrada bajo un profundo lodo. Si se encuentra, debería revelar lo que sucedió en la cabina en los últimos segundos del vuelo.
Los investigadores ya están examinando el Registrador de Datos de Vuelo (FDR) que fue retirado del lecho marino, unos 30 metros bajo el agua, el 1 de noviembre. Los hallazgos preliminares sugirieron que hubo problemas con el indicador de velocidad del aire en los últimos tres vuelos antes del accidente.

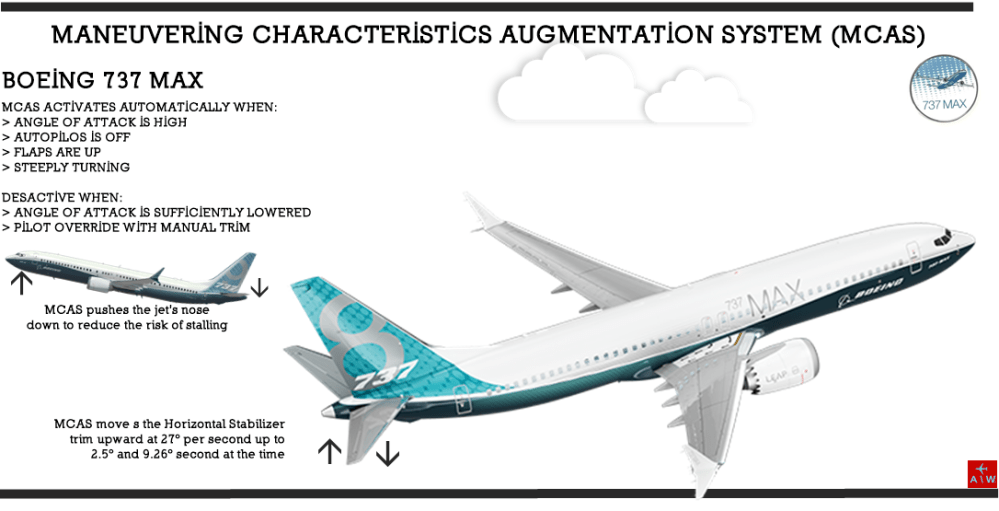

El MCAS del Boeing 737 MAX
Cuando Boeing se dispuso a desarrollar el Boeing 737 MAX, los ingenieros tuvieron que encontrar la manera de de instalar un motor mucho más grande debajo del plano alar. El diseño del nuevo motor LEAP-1B ha obligado al constructor americano mover ligeramente la unidad de potencia principal hacia adelante y arriba y extender el tren de nariz en ocho pulgadas. Esto ha cambiado ligeramente cómo se pilotea el nuevo Boeing 737 MAX.
La reubicación de los motores, más el mayor empuje ha obligado a Boeing a realizar ajustes para corregir la actitud ascendente de la nariz. Boeing introdujo silenciosamente un nuevo sistema para compensar algunas características únicas de vuelos de la generación 737 MAX, la Certificación Parte 25, para ayudar a los pilotos a corregir el Ángulo de Ataque (AOA) de la aeronave cuando de opera manualmente.
El Maneuvering Characteristics Augmentation System (MCAS) se ha diseñado para abordar el problema, según han detallado ingenieros y pilotos de Boeing. El procedimiento de acción del MCAS es activado sin entrada del piloto y ordena al Estabilizador de Cola actuar contrario a las agujas del reloj para que la aeronave corrija la nariz arriba.
El sistema MCAS se activa cuando el Ángulo de Ataque (AOA) detectado supera un umbral basado en la velocidad y la altitud, eso inclina el Estabilizador Horizontal del Boeing 737 MAX a una velocidad de 27º por segundo. El movimiento del Estabilizador Horizontal dependerá del número de Mach (velocidad): a mayor Mach se mueve más lento, a menor Mach, más rápido.
Las acciones concluyentes en el comportamiento de los Boeing 737 MAX determinan que si el Ángulo de Ataque (AOA) es alto, o si los sensores creen erróneamente que lo está, la función MCAS ordena otro comando de estabilizador incremental de la nariz hacia abajo.
La existencia del Sistema MCAS ha sorprendido a pilotos y sindicatos de aerolíneas. El sistema MCAS no se menciona en el Manual de Operaciones de la Tripulación de Vuelo (FCOM) que representa la carta descriptiva para las operaciones de vuelo y es la base de la documentación para las capacitaciones de los pilotos.
Lion Air JT-610 | Day 17
FAA and Boeing study the need for changes in the 737 MAX software after the Lion Air accident
The Federal Aviation Administration of the United States (FAA) and Boeing are evaluating the need for changes in the design or software of the 737 MAX. The study comes after the deadly accident of JT-610 flight of Lion Air last month in Indonesia. Indonesian researchers said the flight system did not describe a system designed to cope with the accident scenario. They asked for more training for the Boeing 737-8 MAX pilots.
Indonesian researchers said on Monday that a system designed to deal with the accident scenario was not described in the Flight Manual of the new Boeing 737 MAX aircraft. Operational procedures and training for the Boeing 737 MAX may also change as the FAA and Boeing learn more from the investigation, the regulator said in a statement. The pilot unions in the United States said later that they were not aware of the new anti-blocking system.
Investigators are preparing to publish their preliminary report on the accident on November 28 or 29, 2018, one month after the Boeing 737-8 MAX Lion Air crashed at high speed in the Java Sea. So far, public attention has focused mainly on possible maintenance issues, including a faulty sensor called the Attack Angle (AOA), a vital piece of information needed to help the aircraft fly at the correct angle to the currents. air and avoid a blockage.
Continues JT-610 investigations
The focus of the investigation seems to be expanding to the clarity of procedures approved by the United States to help pilots avoid the 737 MAX from overreacting to such data loss and methods to train them.
Information retrieved from the plane’s data logger last week prompted the FAA to issue an emergency warning to pilots that a computer on the 737 MAX could force the plane to drop abruptly for up to 10 seconds, even in manual flight, which makes it difficult for a pilot to control the aircraft. Pilots can stop this automatic response by pressing two buttons if the system behaves unexpectedly. But questions have been raised about how well prepared the pilots are for such an automatic reaction and how much time they have to respond. The FAA on Tuesday denied the report that it had launched a new investigation into the safety analyzes conducted by Boeing on the 737 MAX.
Boeing Executive Chairman Dennis Muilenburg said on Tuesday that Boeing provides “all the information needed to safely fly our aircraft and that the 737 MAX is a very safe aircraft this is due to thousands of hours of testing, evaluations , simulations and the provision of the information our pilots need to operate our airplanes safely. In certain failure modes, if there is an incorrect angle of power input information from the aircraft attack sensor, there is a procedure to handle that”.
The number of Boeing 737 delivered dropped slightly from the 61 delivered in September 2018 to 43 in October 2018 due to persistent supplier problems, signaled by a Boeing executive last week.
Pressures on Boeing
Boeing faced mounting pressure on Wednesday for the plane crash in Indonesia when the automaker failed to warn pilots of the potential dangers of a new safety feature involved in the Boeing 737 MAX.
The Director of Operations of the Lion Air airline, Zwingli Silalahi, said: “The manual did not tell the pilots that, in certain situations, the aircraft loss prevention system could automatically trigger an answer, such as lowering the nose of the plane , to avoid or leave a stop. We do not have that in the manual of the Boeing 737-8 MAX. That’s why we do not have the special training for that specific situation. The Boeing Safety Bulletin did not suggest additional training for the pilots operating that plane. We did not receive any information from Boeing or the regulator about additional training for our pilots”, he said.
The result of the ongoing investigation, conducted by the National Transport Commission of Indonesia (KNKT), the National Transportation Safety Board of the United States (NTSB) and Boeing, determined that additional training was necessary.
A Boeing spokesman said Wednesday that he could not “discuss specific details of an ongoing investigation” and that the company “had provided two updates to our operators around the world that re-emphasize existing procedures for these situations. security of the 737 MAX Security is still our top priority and is a fundamental value for everyone at Boeing”, the spokesperson said.
The head of the Directorate of Airworthiness and Air Operations (DOAAO) of the Ministry of Transport of Indonesia said that the agency was in the process of intense discussions about additional training for pilots flying the Boeing 737 MAX aircraft, but did not elaborate on what additional training would it involve?
Air Sensor
The Boeing Operational Bulletin, released last week, signaled to the airlines the “existing flight crew procedures to address any erroneous reading related to the Attack Angle Sensors (AOA). An AOA sensor is an instrument, similar to a small weather vane, that is located outside the plane just below the cockpit and sends information to your computers about the angle of the nose of the plane with respect to the approaching air. The sensor helps determine at what angle it is in relation to the horizon.
The Federal Aviation Administration of the United States (FAA) subsequently issued its own directive advising pilots on how to respond to similar problems.
The voice recorder is missing
More than two weeks after the accident, authorities are still looking for the Voice of the Cabinet Recorder (CVR), which is believed to be buried in deep mud. If found, you should reveal what happened in the cockpit in the last seconds of the flight.
Researchers are already examining the Flight Data Recorder (FDR) that was removed from the seabed, about 30 meters under water, on November 1. Preliminary findings suggested that there were problems with the airspeed indicator on the last three flights before the accident.
The MCAS of the Boeing 737 MAX
When Boeing set out to develop the Boeing 737 MAX, the engineers had to find a way to install a much larger engine below the wing plane. The design of the new LEAP-1B engine has forced the American builder to move the main power unit slightly forward and up and extend the nose train by eight inches. This has changed slightly how the new Boeing 737 MAX is piloted.
The relocation of the engines, plus the greater thrust has forced Boeing to make adjustments to correct the rising attitude of the nose. Boeing quietly introduced a new system to compensate for some unique characteristics of generation 737 MAX flights, the Part 25 Certification, to help pilots correct the Attack Angle (AOA) of the aircraft when operating manually.
The Maneuvering Characteristics Augmentation System (MCAS) has been designed to address the problem, according to detailed Boeing engineers and pilots. The MCAS action procedure is activated without pilot input and commands the Tail Stabilizer to act counterclockwise so that the aircraft corrects the nose up.
FLIGHT CREW OPERATIONS MANUAL (FCOM) OF BOEING 737-8/9 MAX
The MCAS system is activated when the detected Angle of Attack (AOA) exceeds a threshold based on speed and altitude, that tilts the Horizontal Stabilizer of the Boeing 737 MAX at a speed of 27º per second. The movement of the Horizontal Stabilizer will depend on the Mach number (speed): the higher Mach moves slower, amenor Mach, faster.
The conclusive actions in the behavior of the Boeing 737 MAX determine that if the Attack Angle (AOA) is high, or if the sensors mistakenly believe that it is, the MCAS function orders another incremental stabilizer command from the nose down.
The existence of the MCAS System has surprised airline pilots and unions. The MCAS system is not mentioned in the Flight Crew Operations Manual (FCOM) which represents the descriptive letter for flight operations and is the basis of the documentation for the pilots’ trainings. A \ W
